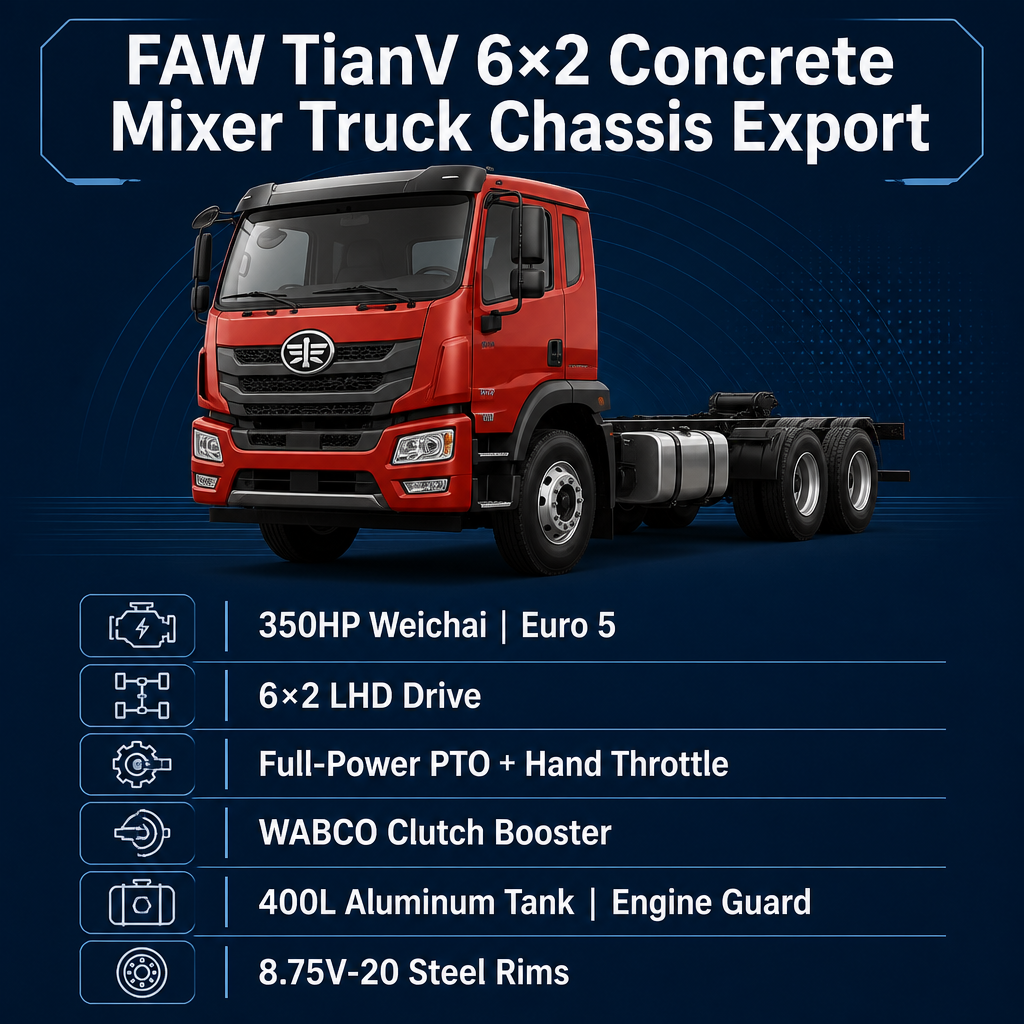

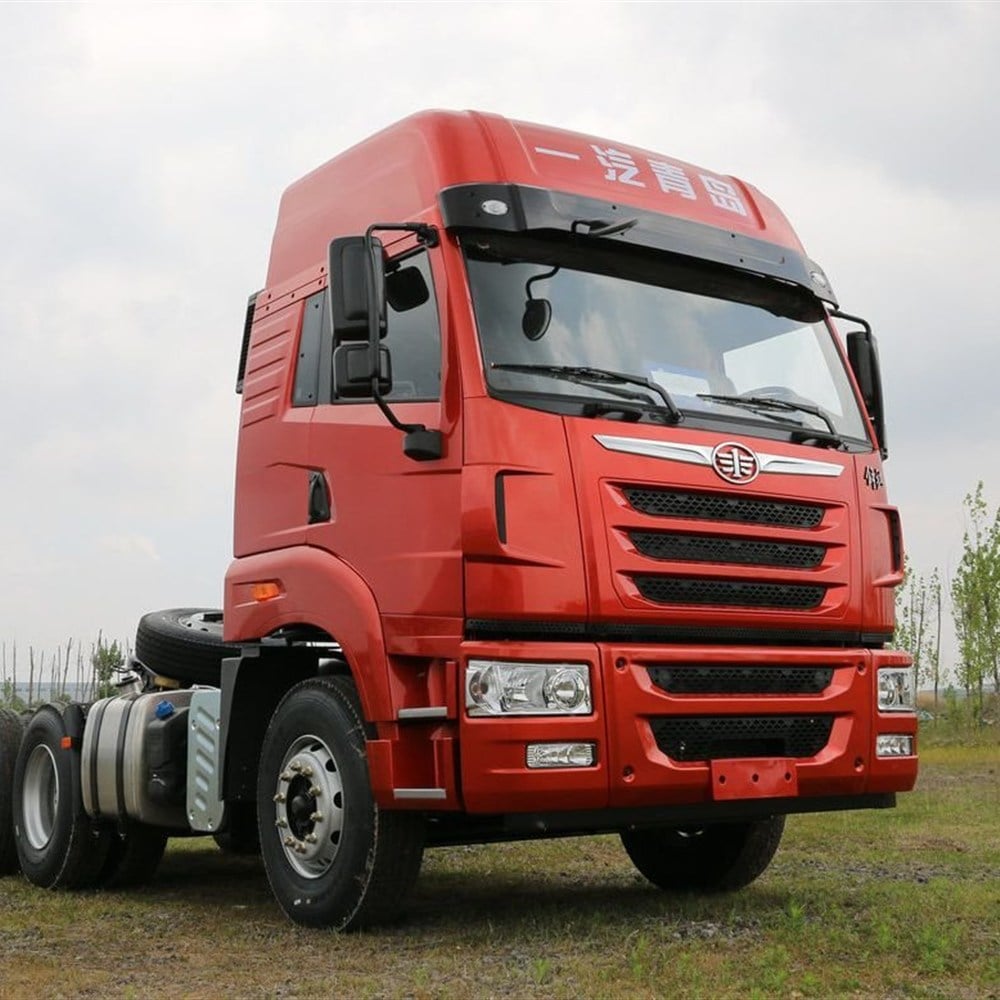

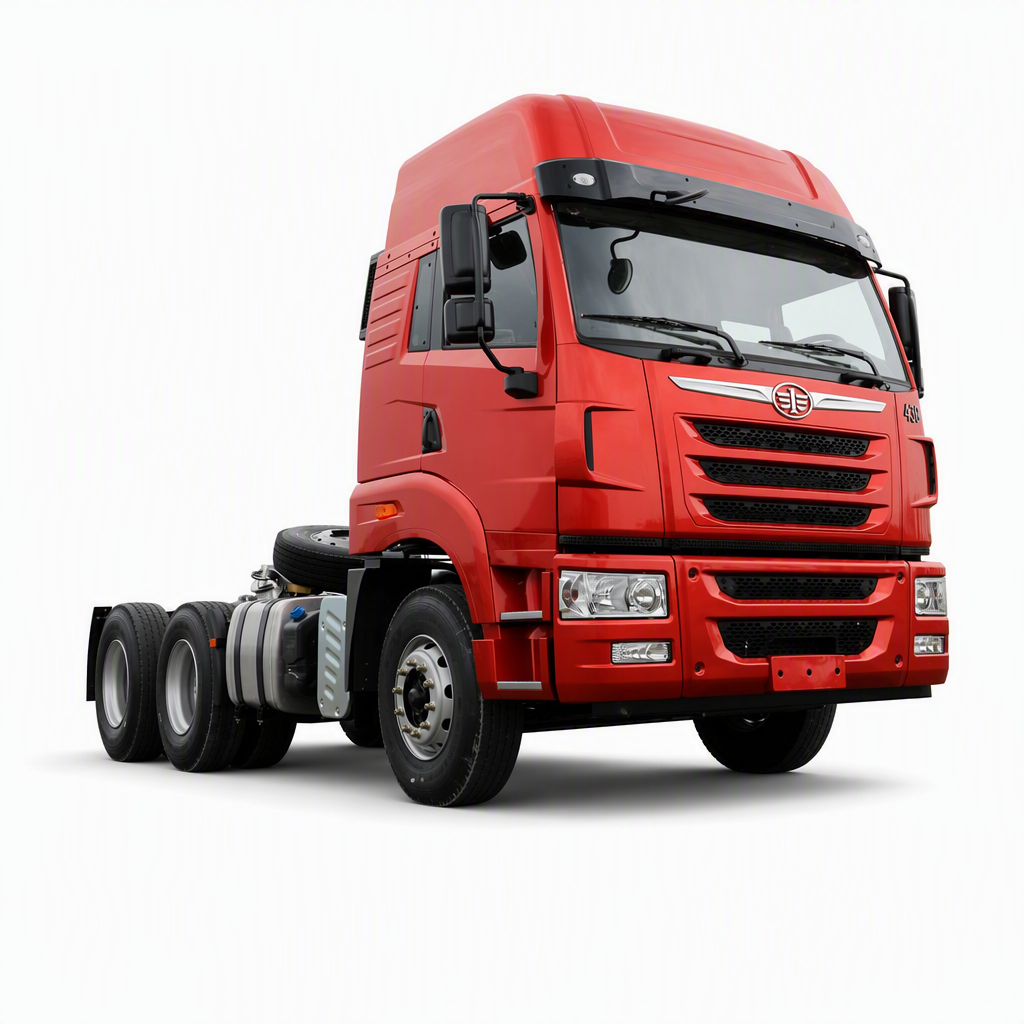

The FAW TianV 6×2 is a concrete mixer truck chassis for export. Weichai 350HP Euro 5. TianV high-floor flat-roof full-float cab. Standard equipment per product specification: full-power PTO, hand throttle, WABCO clutch booster, import clutch, import valves, import operating cable, 400L aluminum tank, Camel 150Ah battery, engine guard, 8.75V-20 steel wheel rims, water freeze protection device. Frame: 320×90×(8+8)mm. Chassis only — mixer drum not included.
Weichai 350HP Euro 5. TianV high-floor flat-roof full-float cab. Equipment: AC, electric hydraulic tilt, electric windows, 8.75V-20 steel rims, hand throttle, full-power PTO, water freeze protection, oil filter, import cable, import clutch, import valves, WABCO clutch booster, Camel 150Ah battery, 400L aluminum tank, engine guard. Frame: 320×90×(8+8)mm. Chassis only. Export vehicle.
- Concrete mixer truck body installation
- Ready-mix concrete transport
- Construction and infrastructure projects
- Export markets requiring Euro 5 mixer chassis
- Full-Power PTO — Maximum power to mixer hydraulic system as specified
- Hand Throttle — Independent engine speed for mixer operation as specified
- WABCO + Import Clutch — European-grade drivetrain components
- Engine Guard — Construction site protection as specified
- Water Freeze Protection — Cold-climate mixer operation readiness

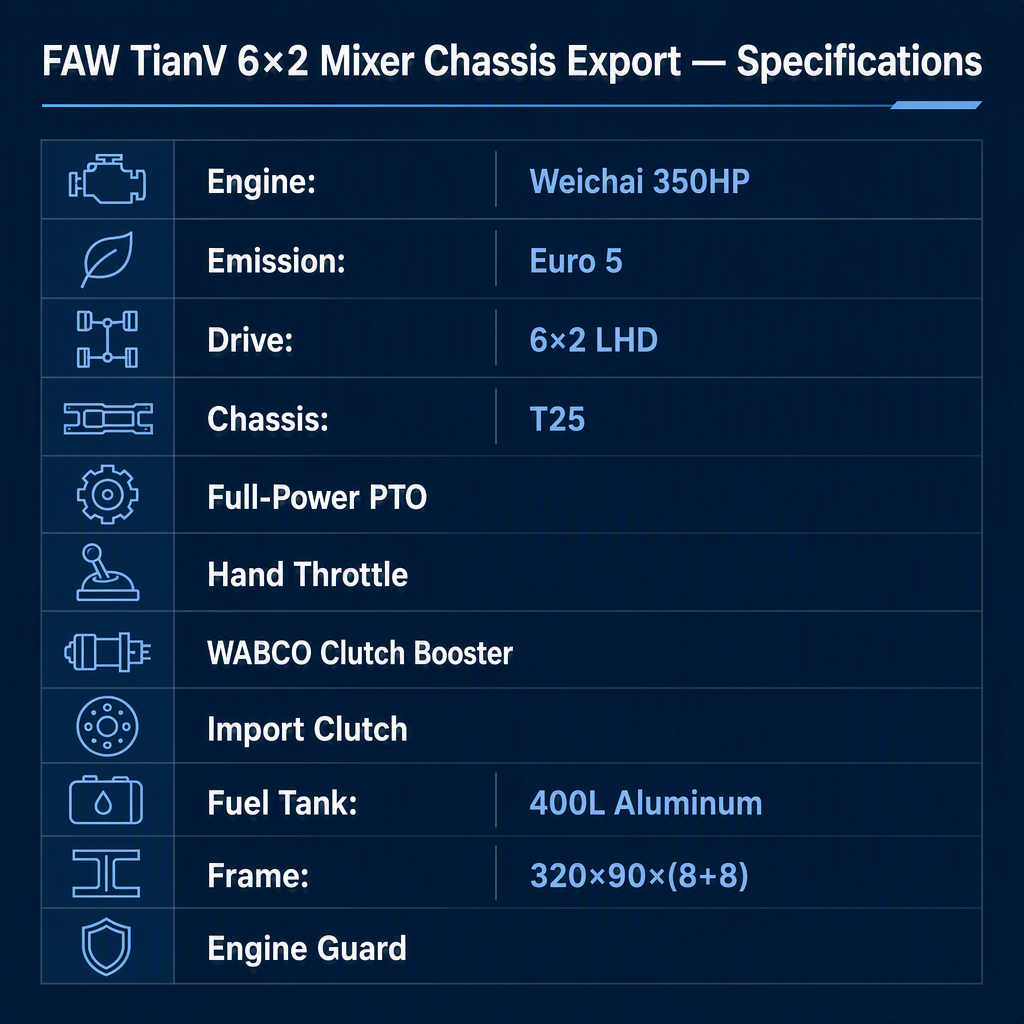

| Category | Specifications |
|---|---|
| Powertrain + PTO | Weichai 350 HP Engine | Euro 5 | 6×2 LHD | Full-Power PTO | Hand Throttle | Imported Clutch | WABCO Booster |
| Chassis | Frame: 320 × 90 × (8+8) mm | 400L Aluminum Fuel Tank | Camel 150Ah Battery | Engine Guard | 8.75V-20 Rims | Water Freeze Protection System |
| Cab | TianV High-Floor Flat-Roof Full-Float Cab | Air Conditioning | Electric Windows | Electric Hydraulic Cab Tilt |
| Note | Chassis Only. Mixer Drum, Hydraulic System, and Body Components to Be Installed by Buyer / Body Builder |
- Export configuration at factory — full-power PTO, hand throttle, engine guard all fitted
- PTO output specification available for body builder coordination
- FAW Jiefang international export technical consultation
- Warranty subject to sales contract
Note: Confirm emission acceptance and import requirements with local authorities before purchase.
Q1: Is the mixer drum included?
A: No. Chassis only. Confirm body builder requirements with PTO specification at order.
Q2: What does hand throttle do?
A: Allows independent engine RPM for mixer operation without foot throttle. As specified.
Q3: What does water freeze protection do?
A: Prevents mixer system water from freezing. As specified — suited to cold-climate operation.
Q4: What warranty applies?
A: Subject to sales contract. Confirm with FAW Jiefang export representative.
