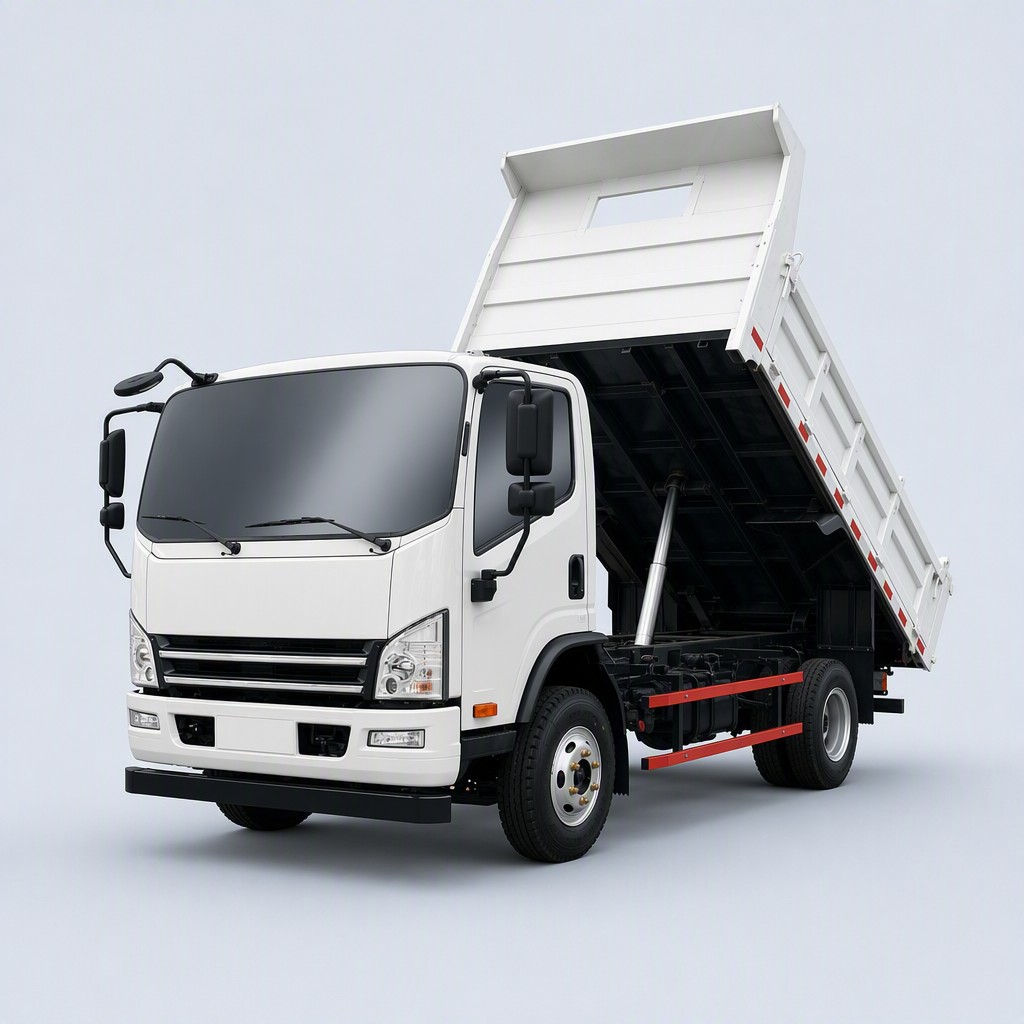

The FAW Tiger VN 4×2 is a compact light dump truck for urban and light construction export. Xichai or Weichai 120HP or 130HP at Euro 3, Euro 4, or Euro 5. Internal spline PTO fitted. Cruise control standard. 70L plastic fuel tank. Locally reinforced frame. Rear overhang 1,050mm. Pre-drilled cylinder crossbeam holes (310mm spacing) and pre-positioned front crossbeam bolt holes (100mm forward offset). Spring brake and exhaust brake standard. Rear protection standard. All specifications as stated in the product parameter sheet.
LHD. Xichai or Weichai 120/130HP, Euro 3/4/5. Tiger VN flat-roof single-cab updated edition (J6F front + J6F seats). Equipment: 70L plastic tank, leaf spring 7/10+4, AC, electric windows + central locking, internal spline PTO, spare tyre wire-lash secured, locally reinforced frame, spring brake, exhaust brake, rear overhang 1,050mm, rear protection, pre-drilled cylinder crossbeam holes at 310mm spacing, rear crossbeam bolt holes pre-positioned at 100mm forward offset, cruise control. Export vehicle.

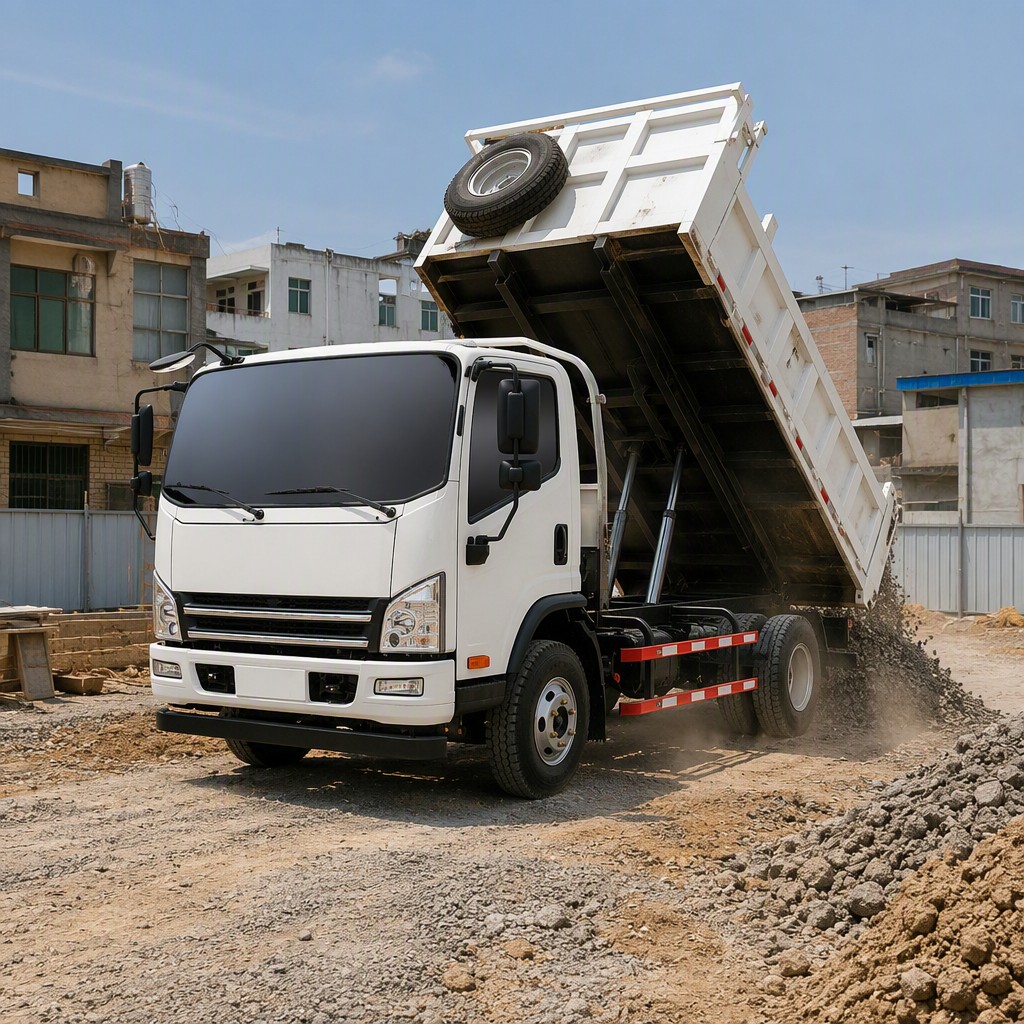

- Light construction and municipal dump operations
- Urban and suburban compact dump applications
- Confined site work requiring smaller turning radius
- Export to markets requiring Euro 3, Euro 4, or Euro 5
- 120/130HP | Euro 3/4/5 — Three emission levels for market flexibility
- Internal Spline PTO — Dump hydraulic drive as specified
- Pre-Drilled Cylinder Holes — Simplified dump body installation as specified
- Cruise Control Standard — Fuel efficiency on all units
- Frame Locally Reinforced — Dump-duty structural enhancement as specified

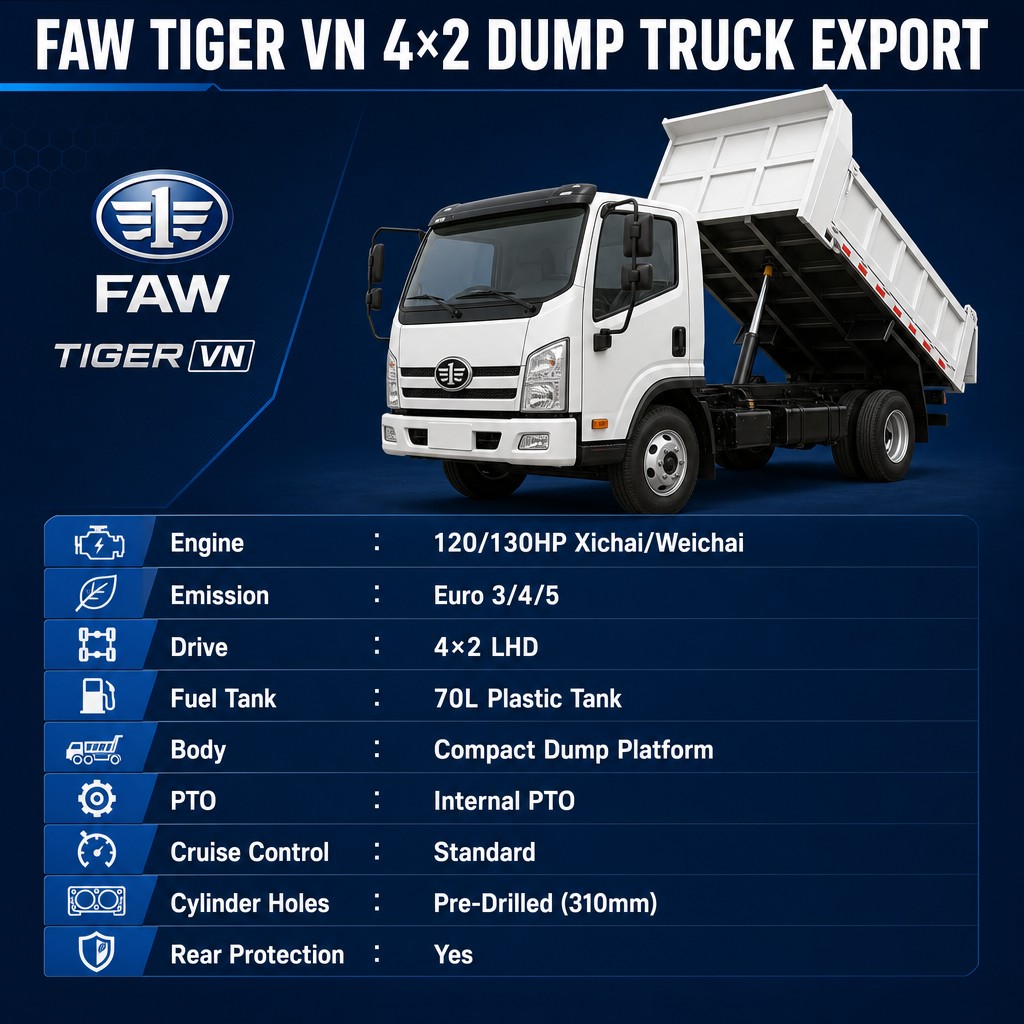

| Category | Specifications |
|---|---|
| Powertrain | Xichai / Weichai 120 / 130 HP Engine | Euro 3 / 4 / 5 | 4×2 LHD | Internal PTO | Spring Brake | Exhaust Brake | Cruise Control |
| Cab | Tiger VN Flat-Roof Single-Cab Updated Edition | J6F Front + J6F Seats | Air Conditioning | Electric Windows + Central Locking |
| Chassis | 70L Plastic Fuel Tank | 7/10+4 Leaf Spring Suspension | Locally Reinforced Frame | Rear Overhang: 1,050 mm | Pre-Drilled Cylinder Holes (310 mm) | Pre-Positioned Bolt Holes (+100 mm) | Rear Protection | Spare Tyre with Wire-Lash Mounting |
- Export configuration at factory
- FAW Jiefang international export technical consultation
- Warranty subject to sales contract
Note: Confirm emission acceptance and import requirements with local authorities before purchase.
Q1: What are the pre-drilled cylinder crossbeam holes for?
A: Factory pre-positioned 310mm-spacing holes and 100mm forward-offset bolt holes simplify dump body hydraulic cylinder bracket installation. As stated in product data.
Q2: What emission levels are available?
A: Euro 3, Euro 4, and Euro 5. Confirm target market requirement.
Q3: Is a dump body included?
A: Confirm dump body inclusion with FAW export representative at order.
Q4: What warranty applies?
A: Subject to sales contract. Confirm with FAW Jiefang export representative.
