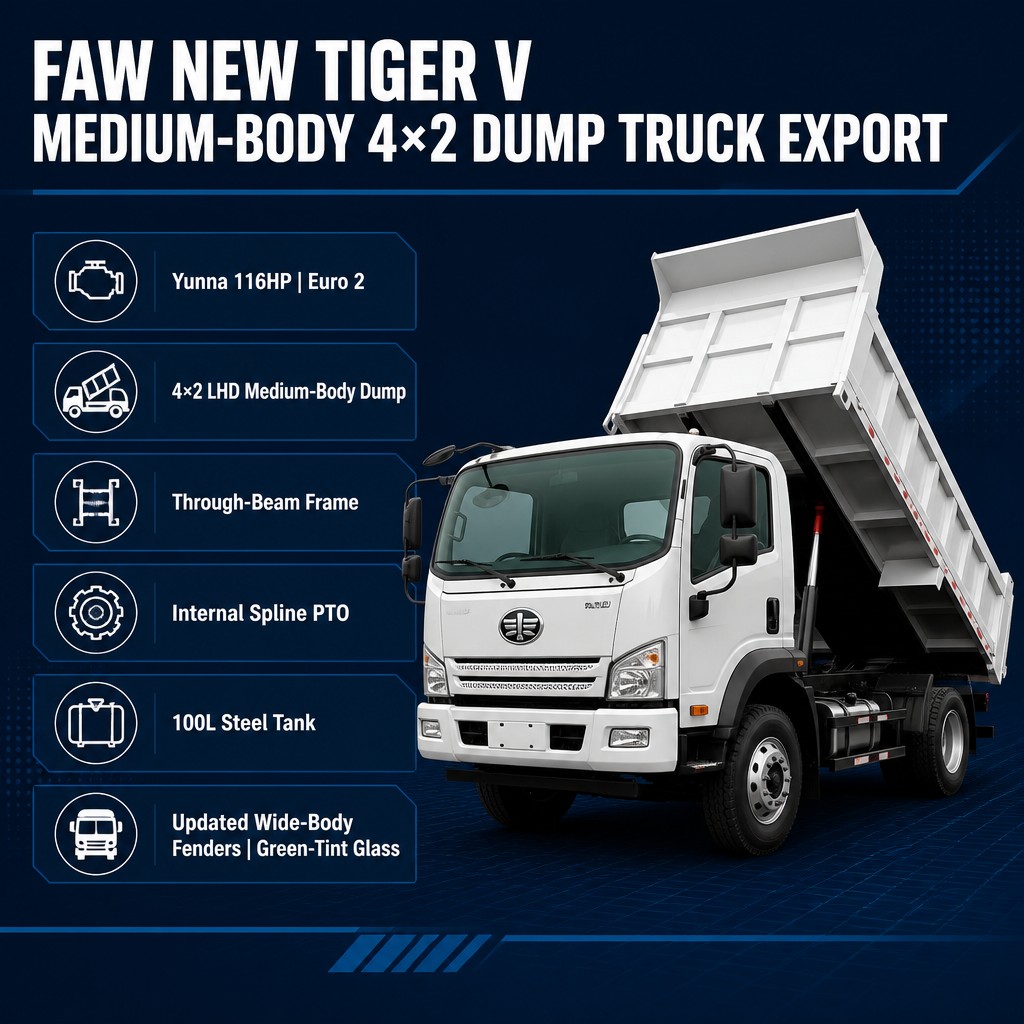

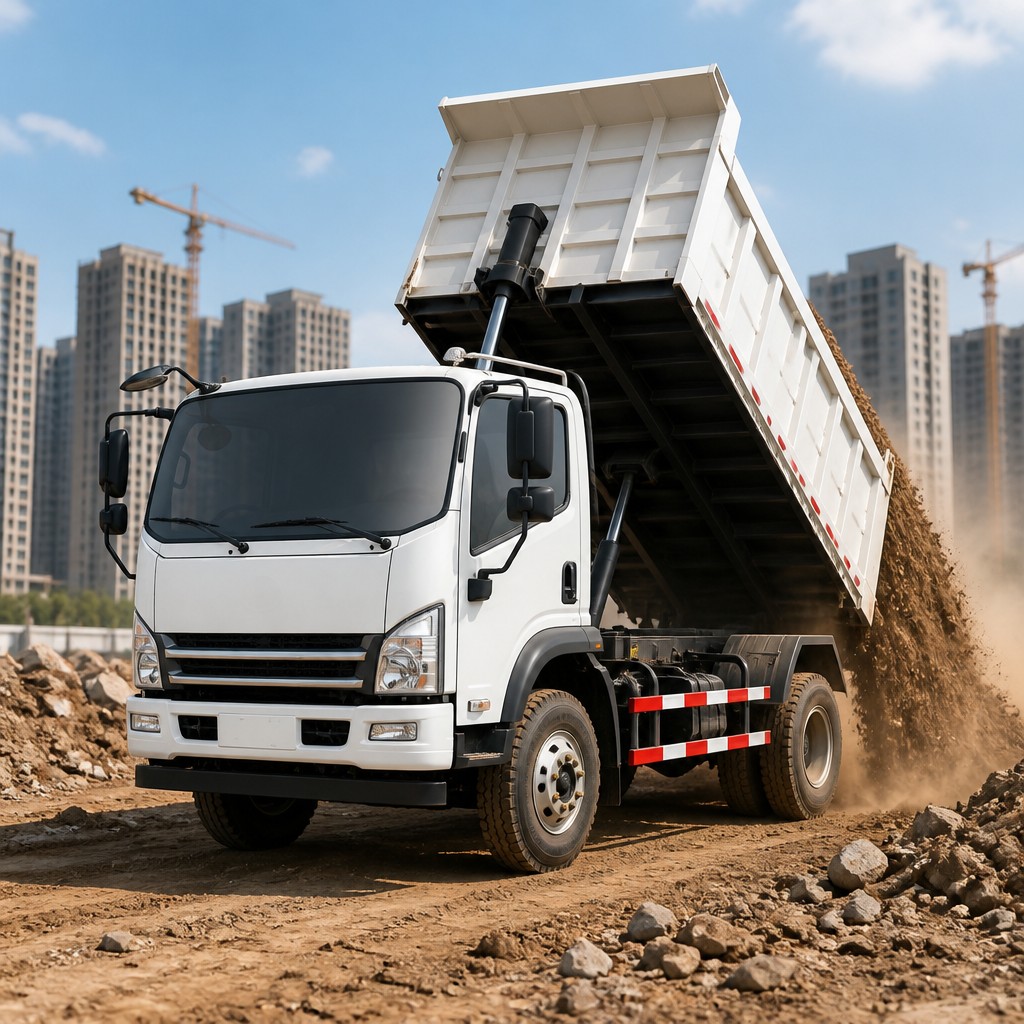

The FAW New Tiger V medium-body 4×2 dump truck is an entry-level light dump vehicle on a medium-body platform. Yunna 116HP Euro 2. Internal spline PTO fitted. Through-beam (straight-through) frame construction. Rear overhang 1,000mm. Updated-edition widened fenders. 100L steel fuel tank. 90Ah battery. Green-tint glass. Right-side back-pack air intake. English instrument. Spring brake and exhaust brake standard. All specifications as stated in the product parameter sheet.
LHD. Yunna 116HP Euro 2. New Tiger V medium-body single-cab, updated edition. Equipment: internal spline PTO, rear overhang 1,000mm, through-beam straight frame, leaf spring 7/10+4, green glass, right-side back-pack air intake, updated-edition widened fenders, English instrument, multi-function steering wheel, spring brake, 100L steel tank, 90Ah battery, AC, electric windows + central locking, exhaust brake. Export vehicle.
- Entry-level medium-body dump operations
- Urban and short-distance dump transport
- Export to markets accepting Euro 2
- Small construction and municipal fleet
- Through-Beam Frame — Robust straight-beam chassis for medium-body dump duty
- Internal Spline PTO — Dump body hydraulic drive as specified
- Updated Widened Fenders — Updated-edition specification
- English Instrument — Clear English instrument panel as specified
- Green-Tint Glass — As specified in product data

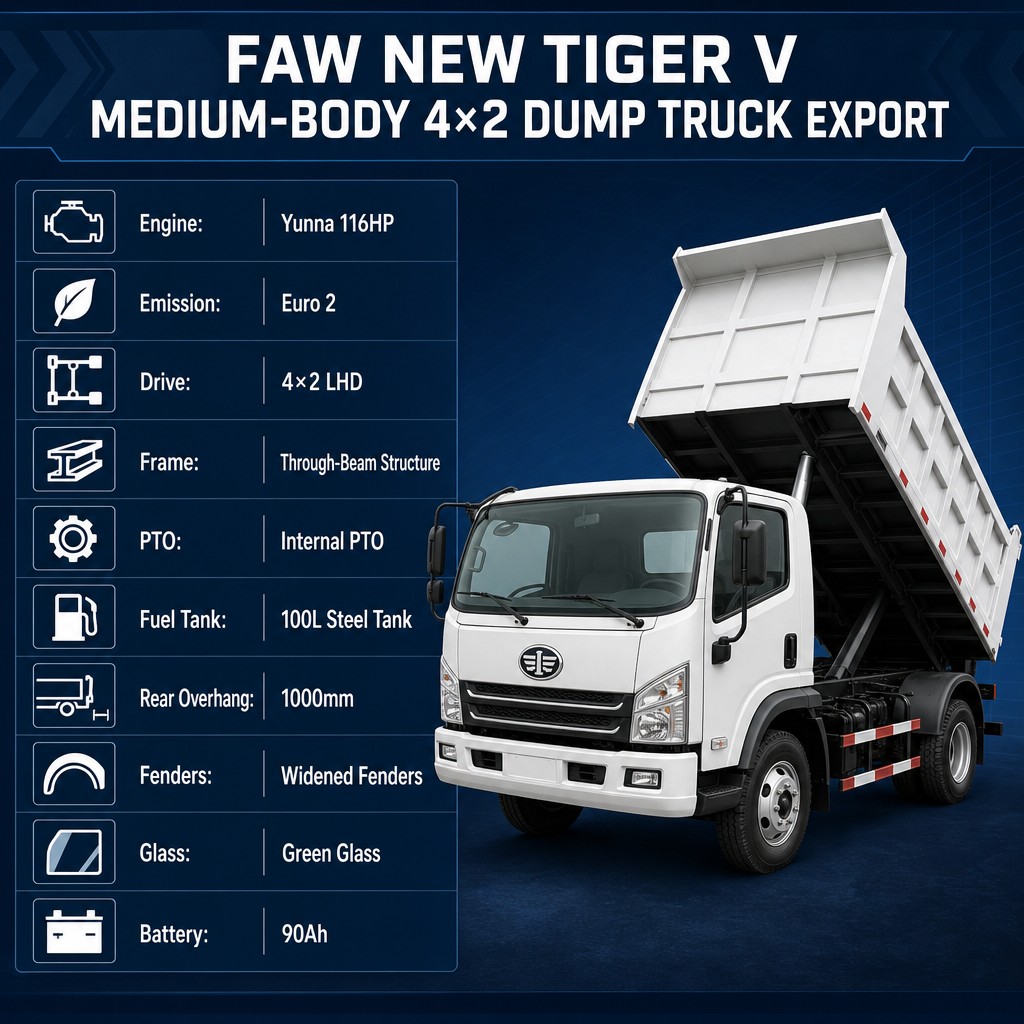

| Category | Specifications |
|---|---|
| Powertrain | Yunna 116 HP Engine | Euro 2 | 4×2 LHD | Internal PTO | Spring Brake | Exhaust Brake |
| Cab | New Tiger V Medium-Body Single-Cab Updated Edition | English Instrument Panel | Multi-Function Steering Wheel | Air Conditioning | Electric Windows + Central Locking | Green-Tint Glass |
| Chassis | Through-Beam Frame | 100L Steel Fuel Tank | 7/10+4 Leaf Spring Suspension | Rear Overhang: 1,000 mm | Widened Fenders | Right Rear Backpack Air Intake | 90Ah Battery |
- Export configuration at factory
- FAW Jiefang international export technical consultation
- Warranty subject to sales contract
Note: Confirm Euro 2 acceptance and import requirements with local authorities before purchase.
Q1: What is a through-beam frame?
A: Frame longitudinal beams run straight through without interruption, as stated in the product data. Provides consistent rigidity across the full chassis length for medium-body dump duty.
Q2: Is Euro 2 accepted in the target market?
A: Confirm with local authorities before purchase.
Q3: Is right-hand drive available?
A: No. Left-hand drive only.
Q4: What warranty applies?
A: Subject to sales contract. Confirm with FAW Jiefang export representative.
