The FAW Tiger 6G dump truck is available in three drive configurations on the T28 chassis platform. The 4×2 standard version features a 3,750mm three-way opening dump body, mid-mount single-lift hydraulic cylinder, bilingual LCD instrument (Spanish and Arabic), and 200L aluminum tank. The 4×4 off-road version is configured for export markets with a GVW 28T rating and no ABS for specific market requirements. The 6×4 three-axle version adds an air suspension lift axle, cold-climate package option, and 240HP output. All specifications as stated in the product parameter sheet.
4×2 Standard — LHD
Engine: Yuchai 140–200HP. Emission: Euro 3 / Euro 5. Drive: 4×2 LHD. T28 chassis. 3,750×2,100mm three-way opening dump body. Mid-mount Φ180 single-lift cylinder. 200L aluminum tank. 8-inch bilingual LCD instrument (Spanish and Arabic). Auto AC, electric windows, central locking. Max speed 83km/h.
4×4 Off-Road — LHD
Engine: Yuchai 180HP. Emission: Euro 5. Drive: 4×4 LHD. T28 chassis GVW 28T. 1,300mm front overhang. Max speed 86km/h. No ABS. Right-side spare tyre. Blank English nameplate, no VIN code printed. Internal hydraulic tank. 200L aluminum tank.
6×4 Three-Axle — LHD
Engine: Yuchai 240HP. Emission: Euro 5. Drive: 6×4 LHD. T28 dump chassis. Air suspension lift axle (secondary axle, pneumatic). Max speed 87km/h (89km/h limited). Φ140 front-lift cylinder with slow-down control. Cold-climate package available (intake preheating, heated fuel filter, coolant heater, AGM 180Ah battery, anti-freeze brake hose). No nameplate, no VIN.

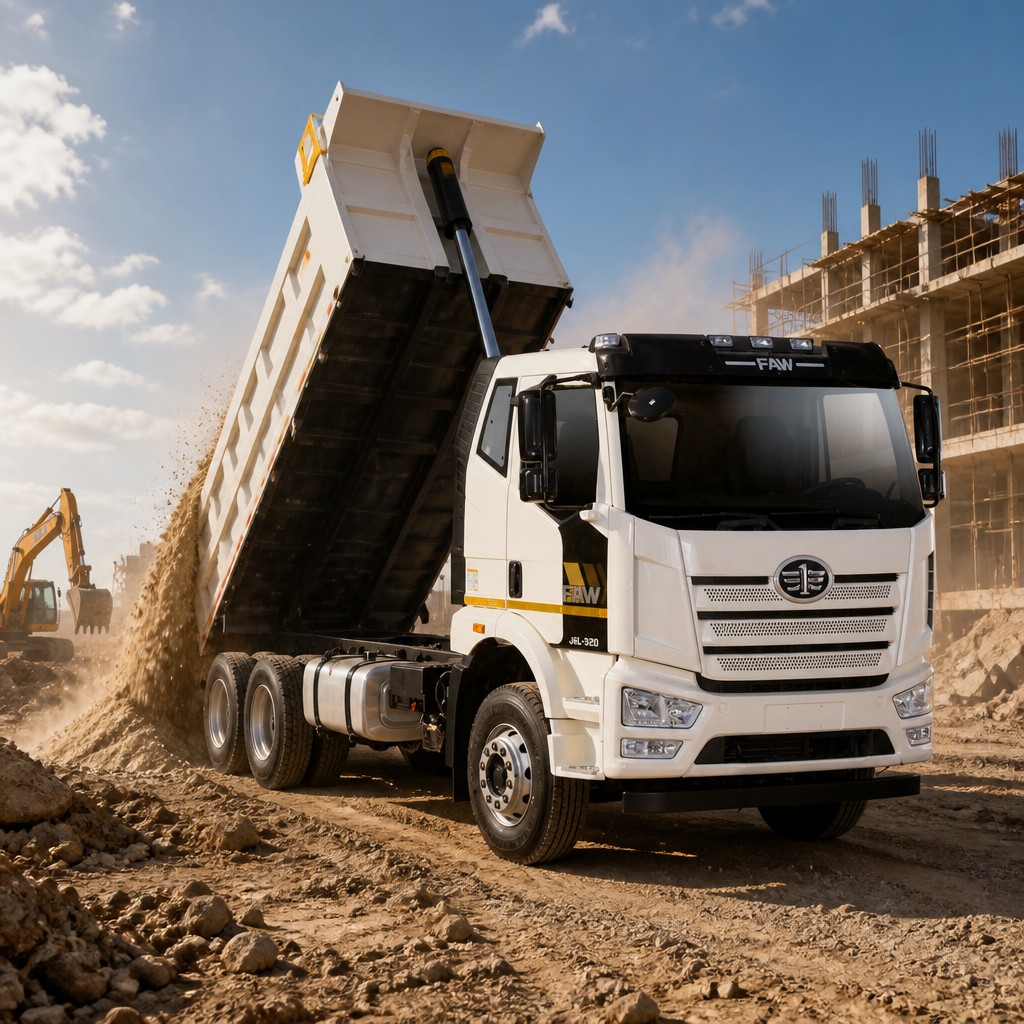

- Construction material, gravel, sand, and aggregate transport
- Municipal and infrastructure dump operations
- Off-road construction and mining dump (4×4)
- Three-axle high-payload dump applications (6×4)
- Export to Spanish-language and Arabic-language markets (4×2)

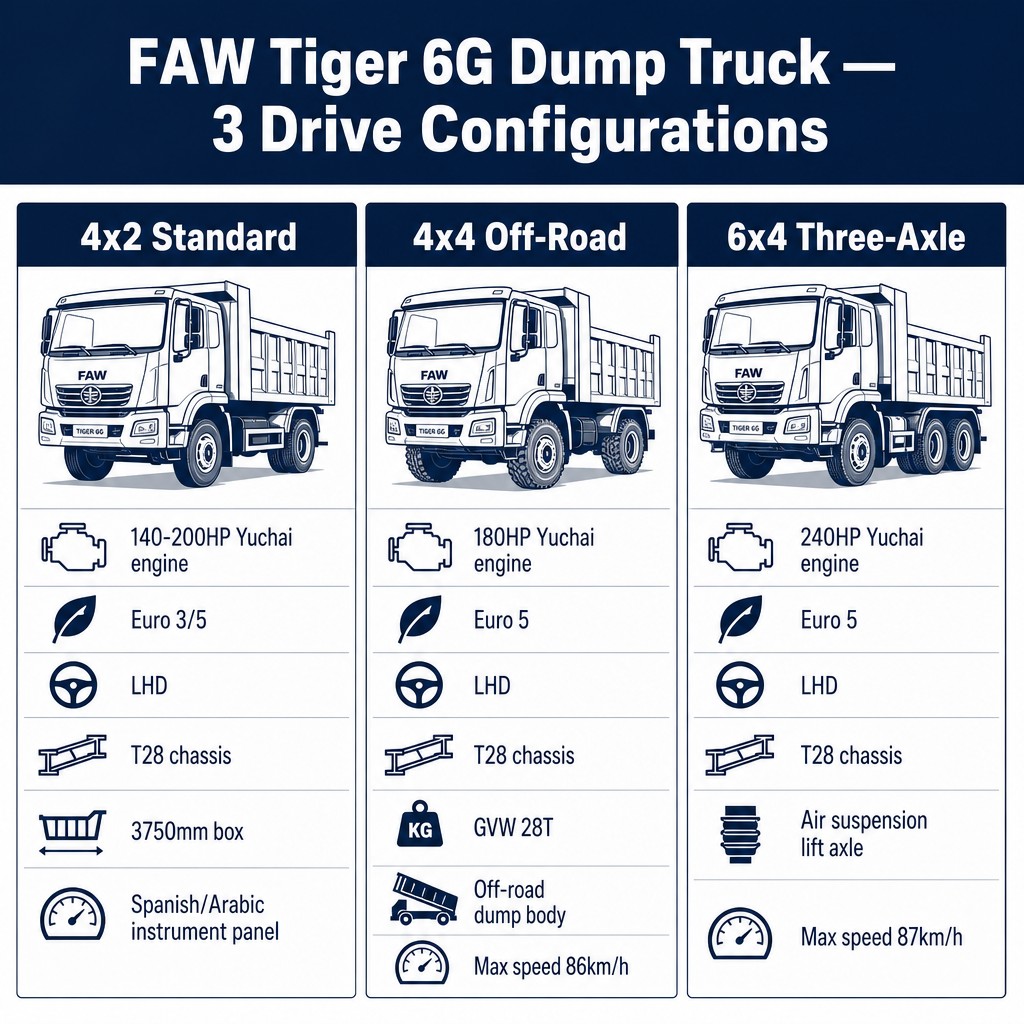

- 3 Drive Configs: 4×2 / 4×4 / 6×4 — One platform covering standard, off-road, and three-axle dump
- Bilingual LCD Instrument (4×2) — Spanish and Arabic factory-fitted as specified
- T28 Chassis | Φ180 Hydraulic Lift — Purpose-built dump platform
- Air Suspension Lift Axle (6×4) — Reduces unladen tyre wear
- Cold-Climate Package Available (6×4) — AGM battery, heated fuel filter, coolant heater

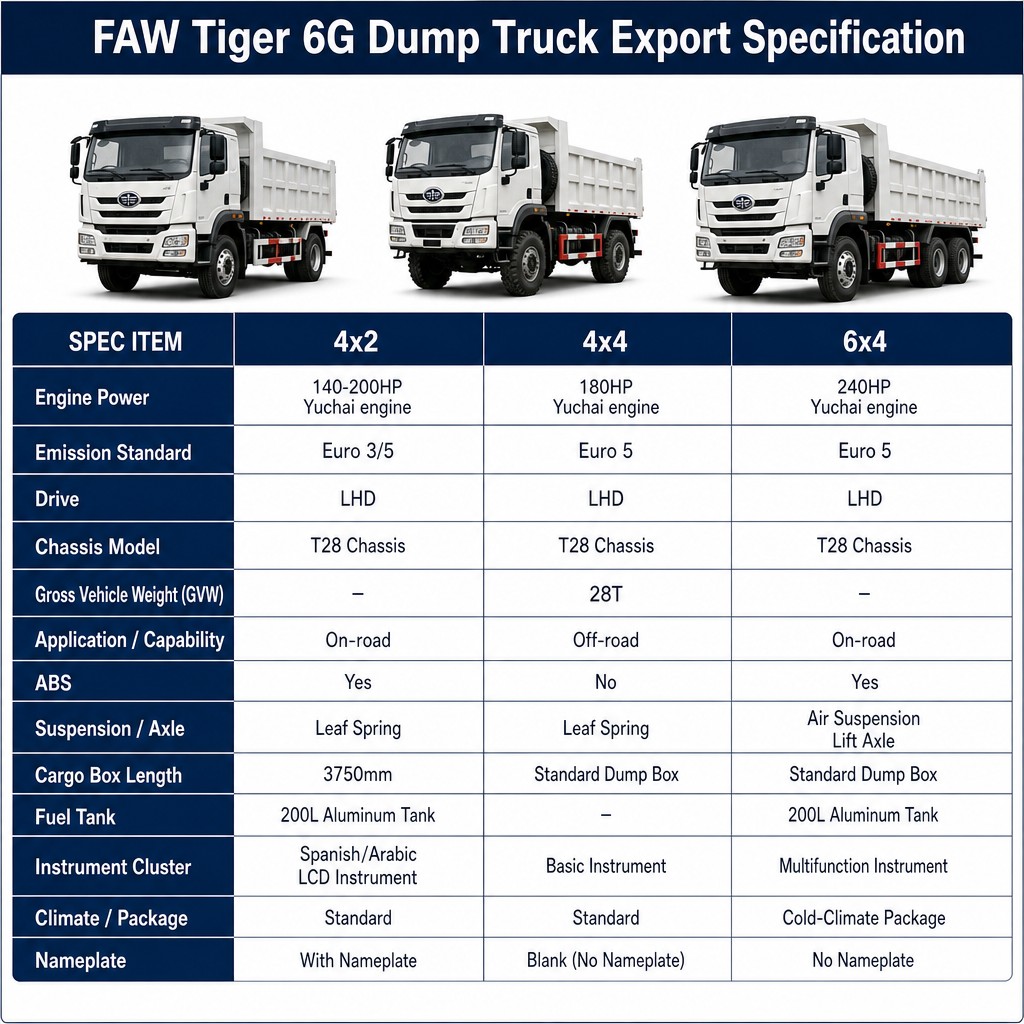

| Feature | 4×2 Standard | 4×4 Off-Road | 6×4 Three-Axle |
|---|---|---|---|
| Engine Power | 140–200 HP | 180 HP | 240 HP |
| Emission Standard | Euro 3 / 5 | Euro 5 | Euro 5 |
| Drive Configuration | 4×2 LHD | 4×4 LHD | 6×4 LHD |
| Gross Vehicle Weight (GVW) | Standard | 28T | Standard |
| Dump Cylinder | Φ180 Mid-Mount Cylinder | Φ180 Mid-Mount Cylinder | Φ140 Front-Lift Cylinder |
| Lift Axle | — | — | Air Suspension Lift Axle |
| ABS System | Domestic ABS | No ABS | Domestic ABS |
| Instrument Panel | Spanish + Arabic LCD | Standard | Standard |
| Nameplate | English Nameplate | Blank | No Nameplate |
| VIN Marking | Printed | Not Printed | Not Printed |
| Cold-Climate Package | — | — | Available |
| Model | Powertrain | Emission Standard | Drive Configuration | Key Features |
|---|---|---|---|---|
| 4×2 | Yuchai 140–200 HP | Euro 3 / 5 | 4×2 LHD | T28 Chassis; Φ180 Mid-Mount Cylinder; 3-Way Dump Box: 3750 × 2100 mm; Spanish + Arabic LCD Instrument Panel; 200L Aluminum Fuel Tank; Maximum Speed 83 km/h |
| 4×4 | Yuchai 180 HP | Euro 5 | 4×4 LHD | T28 Chassis; GVW 28T; Φ180 Dump Cylinder; No ABS; Blank Nameplate; No VIN; Right Spare Tyre; Maximum Speed 86 km/h |
| 6×4 | Yuchai 240 HP | Euro 5 | 6×4 LHD | T28 Chassis; Φ140 Front-Lift Cylinder; Air Suspension Lift Axle; Maximum Speed 87 km/h; Cold-Climate Package Available; No Nameplate; No VIN |
- Export configuration complete at factory for all three variants
- Bilingual instrument (Spanish+Arabic) factory-fitted on 4×2 variant
- Cold-climate package documentation available for 6×4 variant on request
- FAW Jiefang international export technical consultation
- Warranty subject to sales contract
Note: Confirm emission acceptance, ABS and registration requirements, and import rules with local authorities before purchase.
Q1: Is the bilingual Spanish and Arabic instrument factory-fitted?
A: Yes. The 8-inch LCD with Spanish and Arabic languages added is specified as standard on the 4×2 configuration.
Q2: Why does the 4×4 have no ABS and no VIN?
A: These are specific export market requirements as stated in the product parameter sheet. Confirm local registration and safety regulations with the relevant authorities before purchase.
Q3: Is the cold-climate package standard on the 6×4?
A: Available as stated in the product data. Confirm whether it is included as standard or as a specified option at order.
Q4: What is the T28 chassis?
A: T28 is the dedicated dump chassis designation as stated in the product specification. Confirm detailed specifications with FAW Jiefang export representative.
Q5: Can I mix drive configurations in one order?
A: Yes. Specify each unit's drive, engine, and emission at order.
