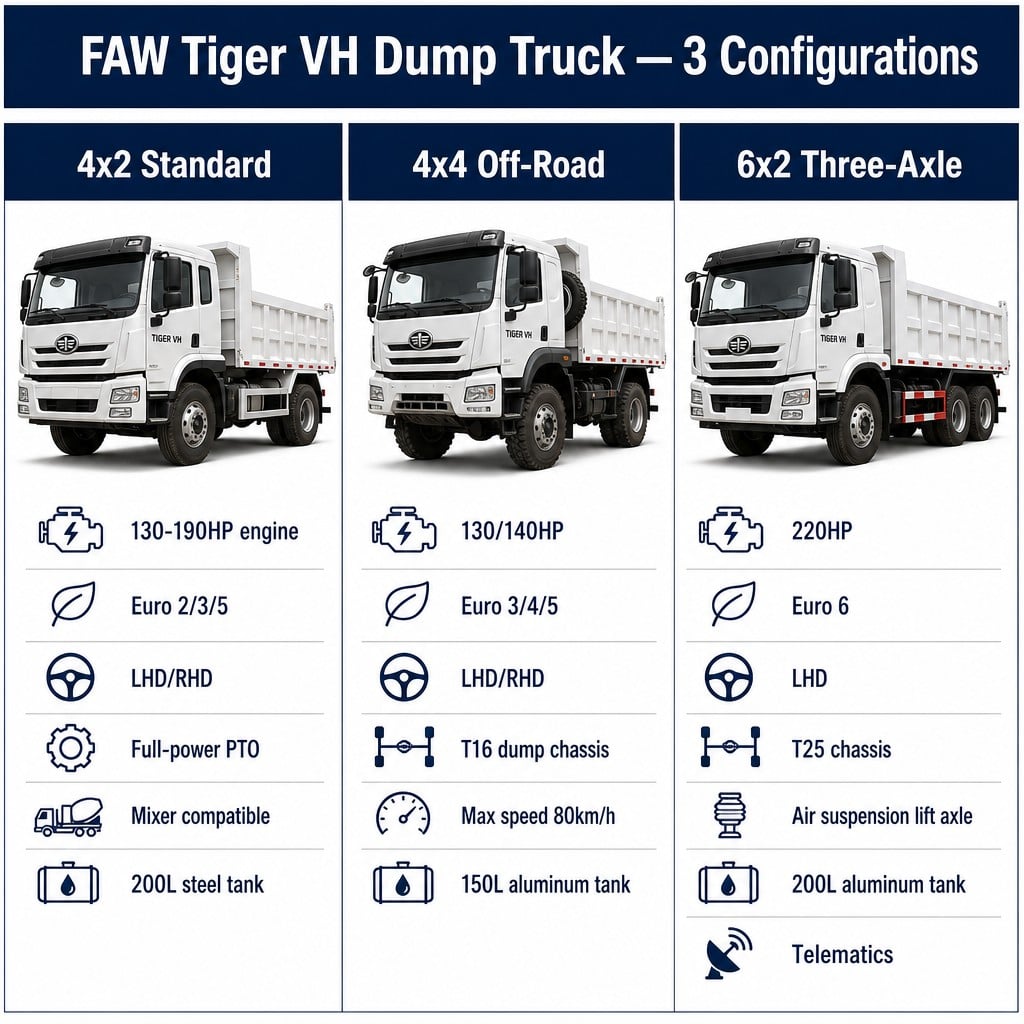

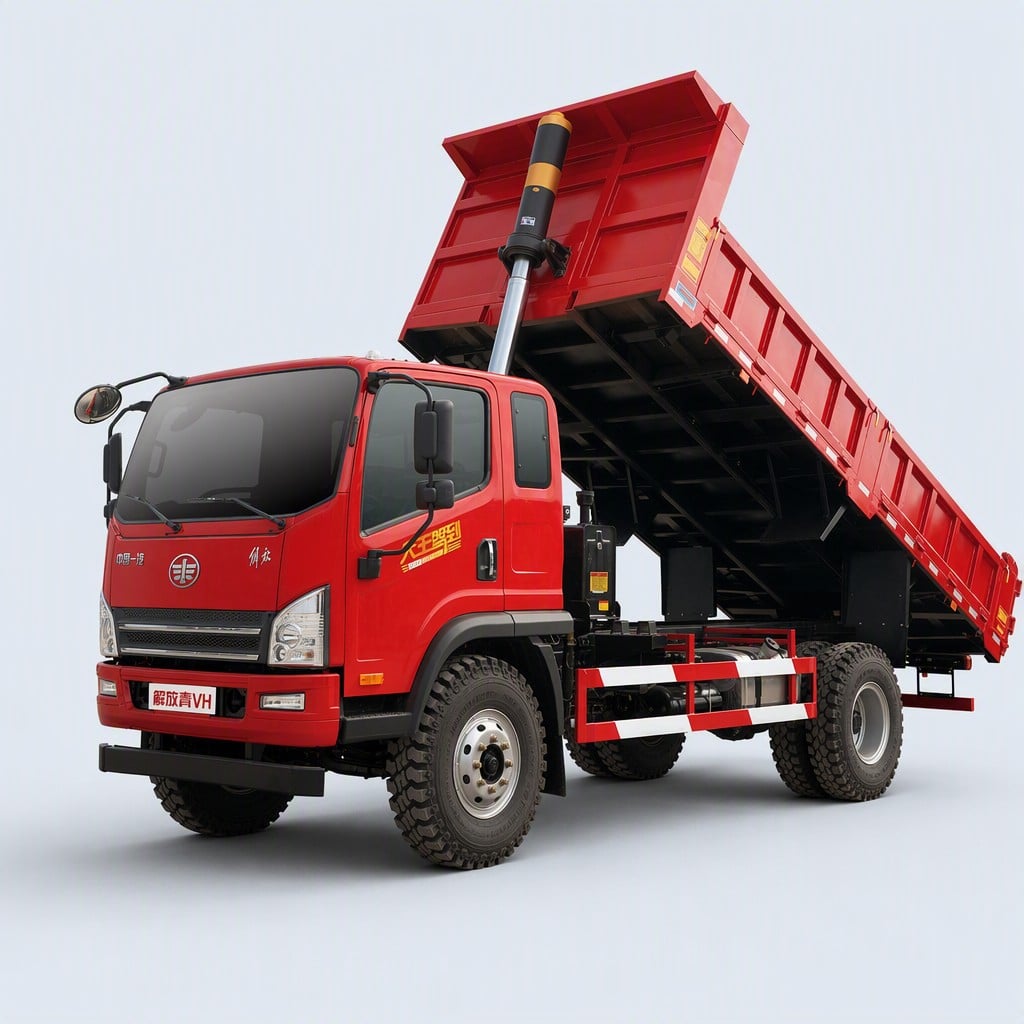

The FAW Tiger VH dump truck is available in three drive configurations. The 4×2 standard version offers full-power PTO, reinforced 10/10+9 suspension, and compatibility with 5m³ mixer body installation, in LHD or RHD. The 4×4 off-road version uses the T16 dedicated dump chassis with 6-spline internal PTO and 150L aluminum tank. The 6×2 three-axle Euro 6 version features an air suspension lift axle, telematics terminal, dashcam, and 200L aluminum tank. All specifications as stated in the product parameter sheet.
4×2 Standard — LHD / RHD
Engine: Weichai/Yuchai 130–190HP. Emission: Euro 2/3/5. Drive: 4×2 LHD or RHD. Full-power PTO. 10/10+9 reinforced suspension. 200L steel tank. Front+rear 10-hole axle bolts. Compatible with 5m³ mixer body. No spare tyre lifter.
4×4 Off-Road — LHD / RHD
Engine: Yuchai 130/140HP. Emission: Euro 3/4/5. Drive: 4×4 LHD or RHD. T16 dump chassis. Max speed 80km/h. 6-spline internal PTO. Φ90 driveshaft (4-bolt flange). 150L aluminum tank. Spare tyre included.
6×2 Three-Axle — LHD
Engine: Yuchai 220HP. Emission: Euro 6. Drive: 6×2 LHD. T25 engineering dump chassis. Max speed 102km/h (89km/h limited). Air suspension lift axle (secondary axle, pneumatic). Telematics terminal, dashcam, cruise control included. 200L aluminum tank.

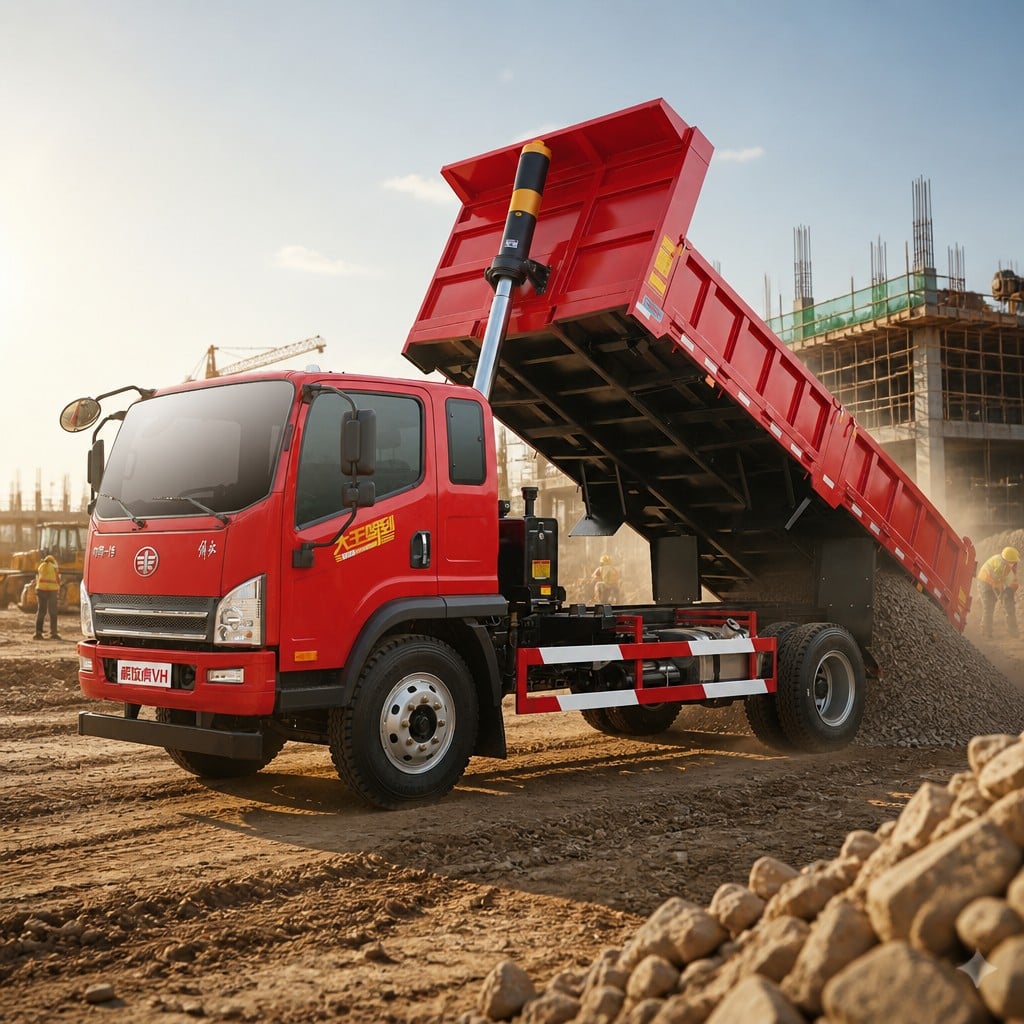

- Construction site dump and material transport
- Mixer body mounting — 5m³ compatible (4×2)
- Off-road rough terrain dump (4×4)
- Three-axle Euro 6 engineering dump (6×2)
- Export to LHD and RHD markets
- 3 Configs: 4×2 / 4×4 / 6×2 — Standard, off-road, and Euro 6 three-axle options
- Full-Power PTO + Mixer Compatible (4×2) — Dual-purpose dump and mixer platform
- LHD + RHD (4×2 and 4×4) — Serves both traffic-side markets
- Air Suspension Lift Axle (6×2) — Unladen efficiency on three-axle platform
- Euro 6 Available (6×2) — Highest emission standard in this dump series

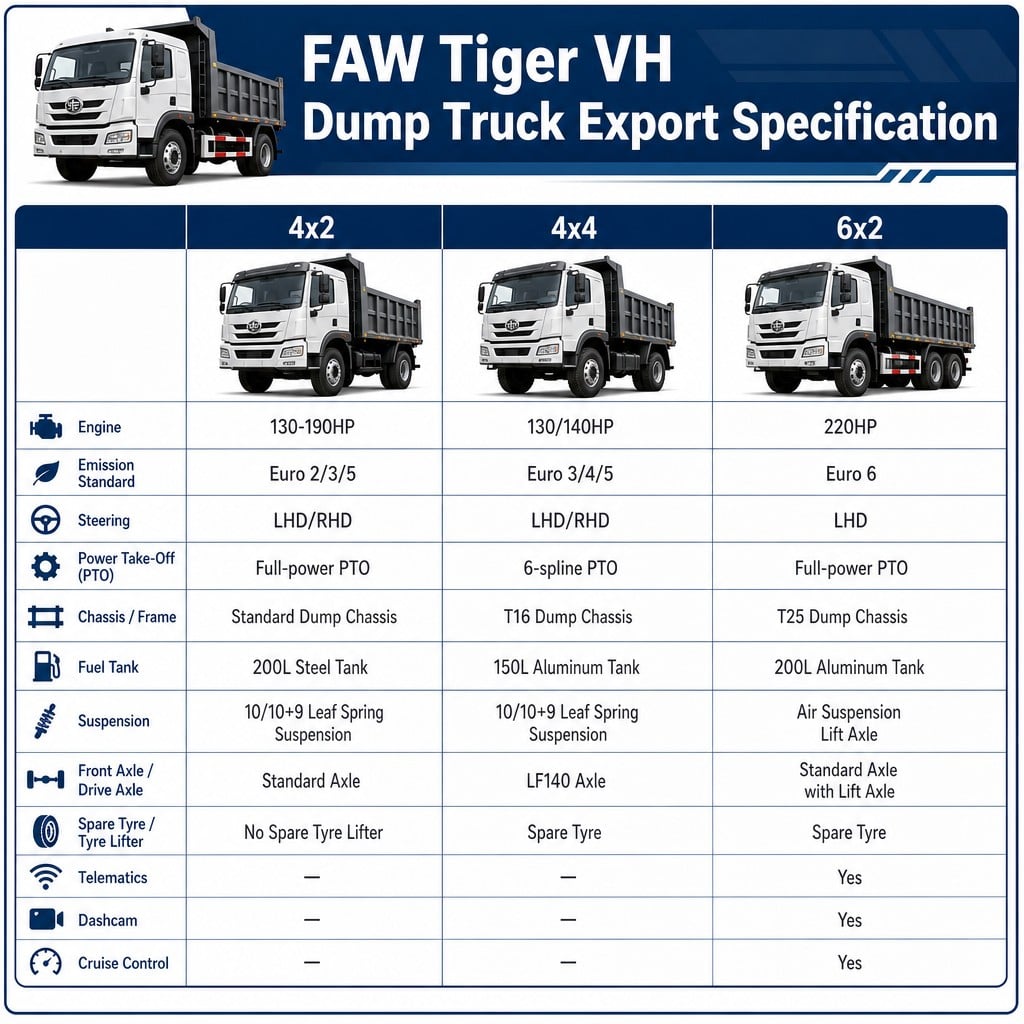

| Feature | 4×2 Standard | 4×4 Off-Road | 6×2 Three-Axle |
|---|---|---|---|
| Engine Power | 130–190 HP | 130 / 140 HP | 220 HP |
| Emission Standard | Euro 2 / 3 / 5 | Euro 3 / 4 / 5 | Euro 6 |
| Steering Configuration | LHD / RHD | LHD / RHD | LHD |
| Chassis Type | Standard Chassis | T16 Chassis | T25 Chassis |
| Maximum Speed | Standard | 80 km/h | 102 km/h |
| PTO System | Full-Power PTO | 6-Spline Internal PTO | Internal PTO |
| Fuel Tank | 200L Steel Tank | 150L Aluminum Tank | 200L Aluminum Tank |
| Lift Axle | — | — | Air Suspension Lift Axle |
| Mixer Compatibility | Compatible (5 m³) | — | — |
| Spare Tyre System | No Lifter | Available | No Spare Tyre Lifter |
| Telematics System | — | — | Available |
| Model | Powertrain | Emission Standard | Drive Configuration | Key Features |
|---|---|---|---|---|
| 4×2 | Weichai / Yuchai 130–190 HP | Euro 2 / 3 / 5 | 4×2 LHD / RHD | Full-power PTO; 10/10+9 suspension; 200L steel fuel tank; Mixer body compatible; No spare tyre lifter |
| 4×4 | Yuchai 130 / 140 HP | Euro 3 / 4 / 5 | 4×4 LHD / RHD | T16 dump chassis; Maximum speed 80 km/h; 6-spline PTO; 150L aluminum fuel tank; Spare tyre included; LF140 |
| 6×2 | Yuchai 220 HP | Euro 6 | 6×2 LHD | T25 chassis; Maximum speed 102 km/h; Air lift axle; Telematics system; Dashcam; Cruise control; 200L aluminum fuel tank |
- Export configuration at factory for all three variants
- T16 and T25 chassis documentation available
- FAW Jiefang international export technical consultation
- Warranty subject to sales contract
Note: Confirm emission acceptance and import requirements with local authorities before purchase.
Q1: Is the 4×2 compatible with a 5m³ mixer body?
A: Yes. The full-power PTO and reinforced suspension are specified as compatible with 5m³ mixer body installation. Confirm with the mixer body builder.
Q2: What is the 6-spline PTO on the 4×4?
A: 6-spline internal spline PTO as specified. Confirm hydraulic pump compatibility with your dump body builder.
Q3: Is there a spare tyre on the 4×4?
A: Yes. Spare tyre is included as specified on the 4×4 variant.
Q4: Is LHD available for the 6×2?
A: The 6×2 is LHD only as specified. The 4×2 and 4×4 are available in both LHD and RHD.
Q5: What warranty applies?
A: Subject to sales contract. Confirm with FAW Jiefang export representative.
