Versatile Heavy Tractor — Diesel & Electric Drive Across All Axle Configurations

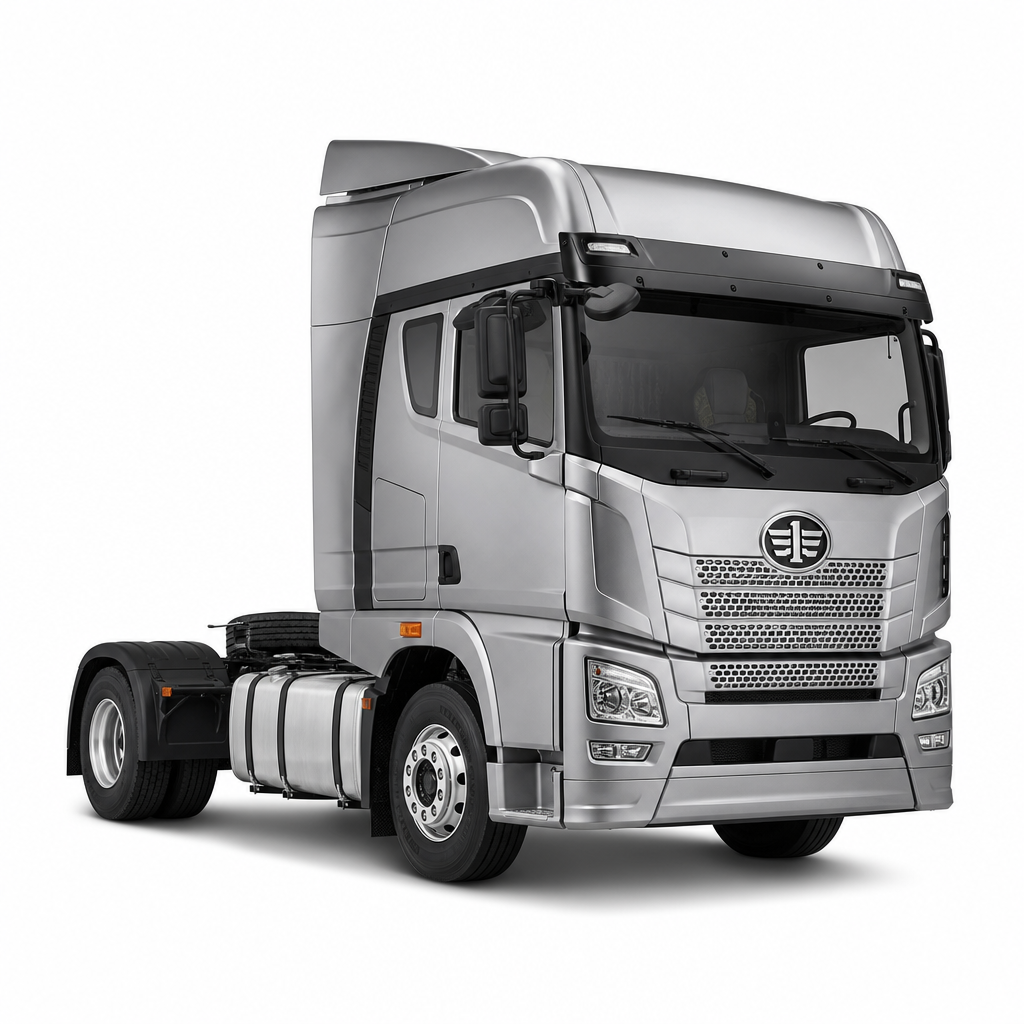

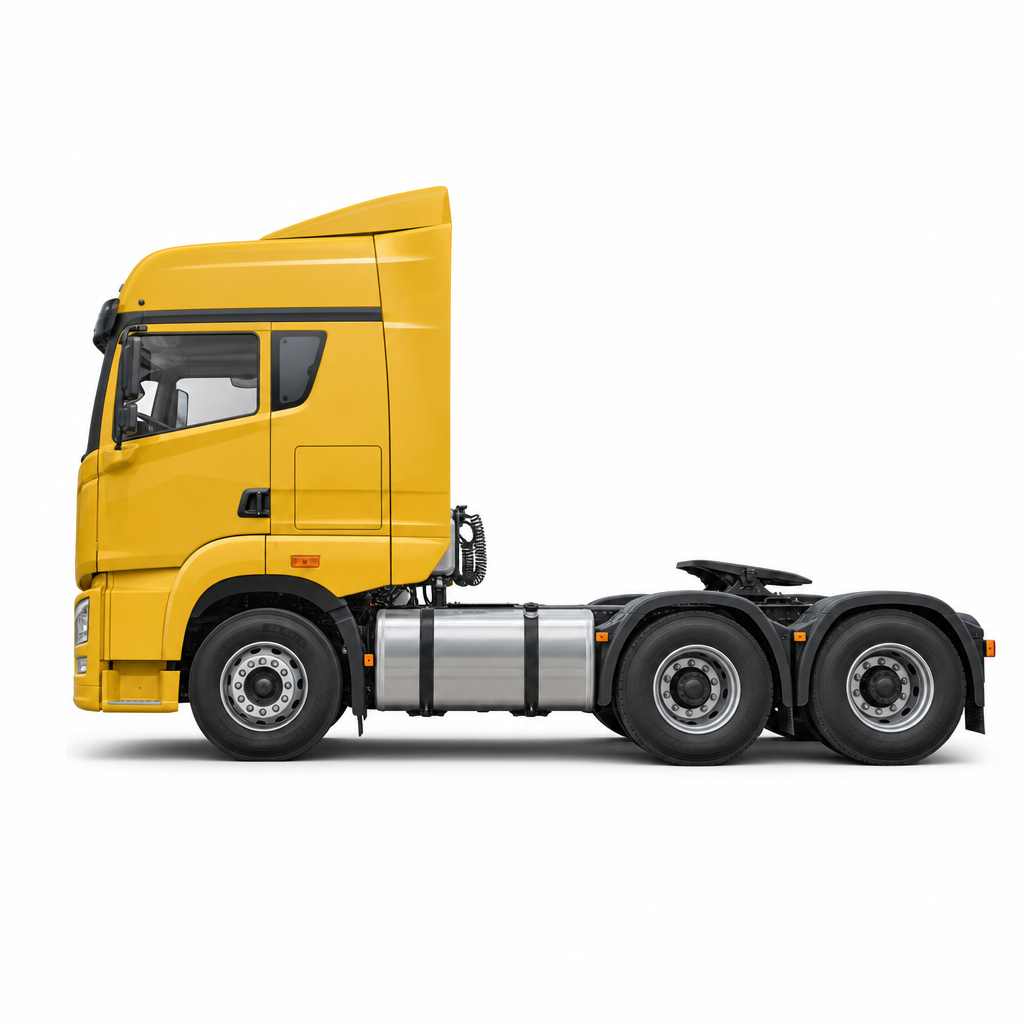

The FAW JH6 is a comprehensive heavy tractor platform offering the widest axle and powertrain matrix in the FAW export lineup: 4×2 diesel, 4×2 EV (battery-swap), 6×4 diesel, 6×4 EV, and 8×4 diesel configurations are all available. The JH6 features a high-roof large half-row flat-floor cab with four-point air suspension, electric cab tilt, and Grammer driver seat. EV variants are equipped with CATL LFP battery packs and are compatible with FAW's battery-swap system, providing fast energy replenishment for high-cycle operations.
- Heavy freight and container transport (diesel variants)
- Urban and short-haul freight with zero-emission requirements (EV variants)
- Heavy-haul multi-axle operations (8×4 diesel)
- Markets with and without developed emission infrastructure
1. Full Axle Range — 4×2, 6×4, and 8×4 configurations for varying payload and road legal requirements
2. Diesel & EV Dual-Energy — Diesel variants for long-haul; CATL LFP EV variants with battery-swap for urban/short-haul freight
3. CATL Battery Pack — 4×2 EV: 281.91kWh; 6×4 EV: 465.99kWh — high energy density for commercial freight
4. Battery-Swap Compatible — EV variants support FAW's fast battery exchange system, reducing charging downtime
5. WABCO Safety System — Imported WABCO ABS/EBS valves, clutch booster, and ESC on applicable variants
- Frame: 300×80×(8+5) / 300×80×(8+8) / 300×80×8 mm
- Engine (Diesel): Xichai / Weichai / Cummins / Yuchai, 370–560PS
- Motor (EV): FAW Motor, 370–571PS
- Emission: Euro II / III / V / VI (diesel) | Zero-emission (EV)
- Drive: 4×2 LHD/RHD / 6×4 LHD/RHD / 8×4 RHD
- Fuel (Diesel): 600–720L aluminum tank | (EV): CATL LFP 281.91–465.99kWh
- Cab: JH6 high-roof large half-row flat-floor, 4-point air suspension, electric tilt
- Coupling: Jost 50 fifth-wheel coupling standard
The JH6's broad emission range (Euro II through zero-emission EV) makes it adaptable to markets at different stages of emission standard adoption. The 8×4 diesel variant is suited to markets where high-axle heavy-haul configurations are permitted. The battery-swap EV variants are appropriate where dedicated swap station infrastructure is available or under development. Confirm local emission, vehicle type approval, and weight limit regulations before ordering.
- Multiple engine brand options (Xichai, Weichai, Cummins, Yuchai) for parts availability in specific markets
- CATL LFP battery with long cycle life and thermal stability
- WABCO safety components: globally supported service and spare parts
- English-language cab labels and operator documentation standard
- Battery-swap EV: compatible with FAW authorized swap stations

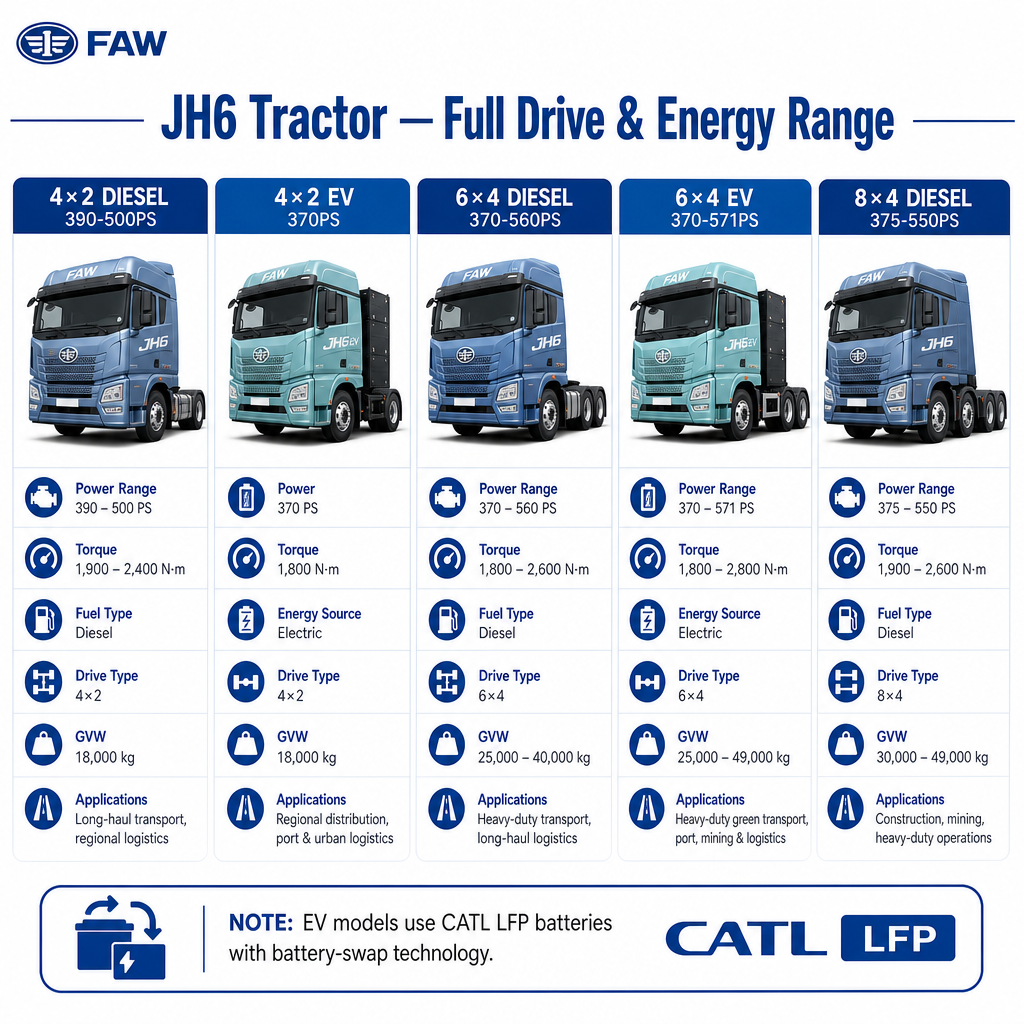

| Configuration | Drive | Powertrain | Power | Emission | Energy |
|---|---|---|---|---|---|
| 4×2 Diesel | 4×2 LHD/RHD | Xichai/Weichai | 390–500 PS | Euro II/V/VI | 725 L Diesel |
| 4×2 EV | 4×2 RHD | FAW Motor | 370 PS | Zero | CATL 281.91 kWh (Swap) |
| 6×4 Diesel | 6×4 LHD/RHD | Multi-brand | 370–560 PS | Euro II–VI | 600 L Diesel |
| 6×4 EV | 6×4 LHD/RHD | FAW Motor | 370–571 PS | Zero | CATL 465.99 kWh |
| 8×4 Diesel | 8×4 RHD | Xichai/Weichai | 375–550 PS | Euro II/V | 720 L Diesel |
Note: 4×2 EV (RHD) and 6×4 EV variants are prototype/pre-series specification. Confirm production status and delivery schedule before ordering.
Q1: How does the battery-swap system work?
A1: The EV variants are designed to exchange depleted battery packs at designated FAW swap stations in under 5 minutes. This eliminates extended charging downtime for high-cycle operations. Confirm swap station availability in your operating area.
Q2: What engine brands are available for the 6×4 diesel?
A2: Xichai, Weichai, Cummins, and Yuchai engines are available depending on configuration and market. Specify your preferred engine brand when placing an order.
Q3: Is the 8×4 configuration available for long-haul tractor use?
A3: Yes. The JH6 8×4 is a tractor-head configuration designed for very heavy combined weight operations. Verify local axle weight limits and road regulations before use.
Q4: What emission standards are covered?
A4: Diesel variants cover Euro II through Euro VI. EV variants are zero-emission. Please verify the required standard for your destination market.
